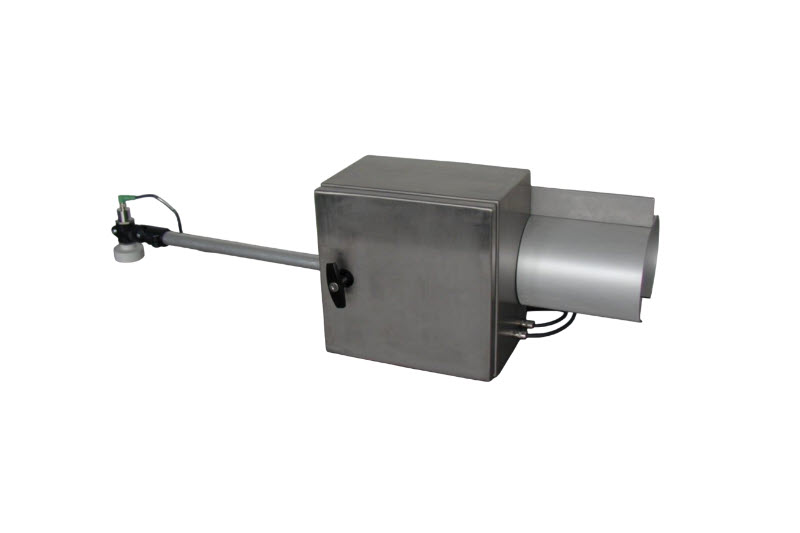

Mobile LOG_aLevel 초음파 파고계

LOG_Laevel Mobile은 휴대와 plug & play, 독립형 원격 관측할 수 있는 Mobile Tide Gauge입니다. 잘 알려지고 성능이 입증된 LOG_aLevel 제품을 기반으로 하며, 보정이 필요없고 정확하며 내구성이 뛰어나며 비용 효율이 매우 뛰어납니다. LOG_aLevel Mobile은 안정적이고 정확하게 수위와 모든 종류의 수현장 수면 변동을 측정합니다.

본 제품은 또한 초음파, 레이더 또는 압력 센서와도 작동할 수 있습니다. LOG_Laevel은 Datalogger, 데이터 통신 시스템 및 추가적인 수문 및 기상 시스템을 포함하여 전체 모니터링 스테이션을 구성하도록 쉽게 확장할 수 있습니다. 또한, 여러 LOG_aLevel 관측소를 상호 연결하여 하나의 네트워크를 형성할 수 있습니다. SCADA 시스템과의 통합도 지원합니다.

고정형 Tide Gauge인 경우, 여기를 클릭하십시오.

해상 플랫폼용  Tide Gauge인 경우, 여기를 클릭하십시오.

온라인 견적 요청

Mobile LOG_aLevel 초음파 파고계 특징
  • Compact, Low-Weight, Easy to Carry
  • Cost effective
  • Extremely Robust & reliable
  • Calibration-Free
  • Maximum Accuracy at all times
  • Maintenance-Free
  • Reliable under Extreme Conditions: Flood, Ice, Storms, Debris, etc.
  • Narrow Ultrasound Beam for Accurate Level even at Wavy Water Surface
  • Simultaneous Wave and Level Measurement
  • Extension With Additional Sensors (Redundancy, Meteorology and Hydrology)
  • Remote Data Transmission, Control and Alerting
  • Easy Integration to Measuring Networks
  • Reduced risk of malfunction in case of flood and ice (no frozen level gauges!)
  • Fast measurements (measurement of steep waves is possible)
  • Remote sensing without influence to water surface
Mobile LOG_aLevel 초음파 파고계 제품사양
  • Stainless steel housing, IP 66, lockable, size: 300x300x200 mm (or 500x500x200 mm)
  • Ultrasound sensor ULL15040, IP 68, measuring range 6 m
  • Reference sensor for sound velocity determination to guarantee a precise distance measurement
  • Controller module for signal processing and sensor control/data acquisition incl. RTC
  • Digital data transfer via interface RS 232
  • Power supply 12 VDC
  • AGM-Battery 12 V; 7,5 Ah at 20 h discharge (no dangerous goods after FAA and IATA)
  • LOG_aLevel Software for online-analysis of measuring networks, system set-up, managing and storing of the data on a Windows PC
  • Measuring range: 6, 8, 10 m
  • Resolution / Field accuracy: 1 mm / 1 cm
  • Sample rate: up to 5 Hz (user selectable)
  • Ultrasound sensor: 80 kHz
  • Working temp: -20 °C up to +70 °C
  • Storage temp: -40 °C up to +80 °C
선택사항 – Mobile LOG_aLevel
  • Ultrasound, Radar and Pressure Sensors
  • Power autonomy: Backup battery up to 200 Ah, Solar Power, Wind Power
  • Data logger with SD memory card (4GB / 8GB)
  • Data transmission: Radio, GPRS, Satellite, Cloud, AIS, AIS AtoN
  • Integration of any desired Hydrological and Meteorological Sensors (also in data stream, visualization and logging)
  • Example Hydrological sensors: Water temperature, Inductive current meter, ADCP, Surface Current Flow, CTD, Salinity, Conductivity, Dissolved Oxygen, etc.
  • Example Meteorological sensors: Wind gauge, Air temperature, Humidity, Rain, Ice, Solar Radiation, Barometric Pressure, Cloud Height, Visibility, complete Weather Stations and sensors for Helidecks, etc.
  • Time: High accuracy GPS – date and time (pps, 1ms accuracy)
  • Data Server / Database
  • Website
  • Alerting / Early Warning System
  • Tide Analysis and Prediction
  • Hypack – Export or Data Stream
Mobile LOG_aLevel 초음파 파고계 적용분야
  • Water level and tide monitoring
  • Coastal protection
  • Harbor and Terminal Management
  • Storm Tide, Flood and Tsunami Measuring Networks
  • Hydrology and Environmental Monitoring
  • (Temporary) Level Gauge to Support Dredging, Surveying and Construction Works
  • Spectral Wave Energy Analysis for Optimal Survey Quality
  • Water/Fluids Reservoir Management
  • Wave Monitoring and Analysis
  • Ship Induced Waves
  • Load Determination for Hydraulic Engineering
  • Torrent Monitoring
  • Local Event Alerting e.g. Flood, Tsunami
  • Real-Time Data for Vessels through AIS/AtoN
  • Local Tide Analysis and Prediction System together with Tidepredictor Software
  • Wave Measurements from Jack-Ups and Rigs
  • Server-based Fleet Management Networks incl. Web Portal (e.g.Ferries, Water-Planes, Supply Vessels)
  • Discharge Hydrographs
  • Flood warning
  • Identification of suitable locations for stationary monitoring stations
  • Monitoring of multiple locations with a single Tide Gauge
