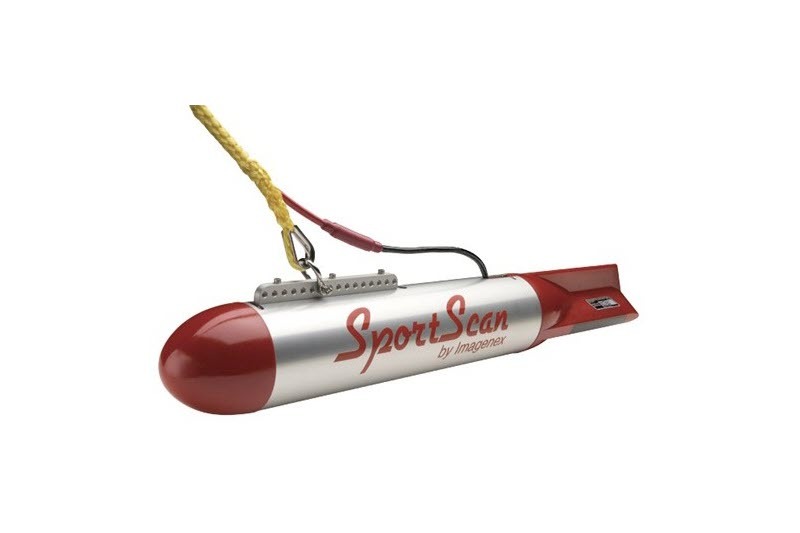

Imagenex SportScan Sidescan Sonar는 스포츠 다이빙 시장에 적합한 저렴한 듀얼 채널 고해상도 디지털 Sidescan Sonar입니다. 사용자 컴퓨터에서 직접 SportScan Sidescan Sonar를 사용하십시오. 필요한 것은 12VDC 전원입니다. 위도와 경도 좌표를 위해 GPS 수신기를 연결하십시오.
Imagenex SportScan Sonar 응용분야
- Underwater Archaeology
- Sunken Timber Recovery
- Search and Recovery
- Surveying
- Law Enforcement Work
- Scientific Research
- Environmental Survey
Imagenex SportScan Sonar 특징
- Very user friendly
- Lightweight and extremely portable
- Inexpensive
- 23m tow cable included
- High resolution
- Up to 240 m total coverage
- GPS interface
- Speed correction
- Height and length measurements
- 4 user selectable colour tables
- XTF Conversion program – Optional
| Frequency | 330 kHz or 330 / 800 kHz |
| Transducer | One transducer per side, tilted down 20° |
| Transducer Beam Width | 330 kHz: 1.8° x 60° 800 kHz: 0.7° x 30° |
| Range Resolution | Both sides displayed: Range scale ÷ 250 |
| Max. Operating Depth | 30 m |
| Max. Cable Length | 60 m |
| Interface | RS-232 serial interface @ 115.2 kbps |
| Connector | Wet mateable (Impulse LPMBH-4-MP) |
| Power Supply | 10 – 16 VDC at 300 mA max. |
| Dimensions | 114 mm diameter x 833 mm length |
| Weight in Air | 4.5 kg, not including ballast |
| Ballast | Standard diver belt weights |
| Materials | Polyurethane & 6061-T6 Aluminum |
| Finish | Clear anodized |
Resources
SportScan Sidescan Sonar Specification Sheet
