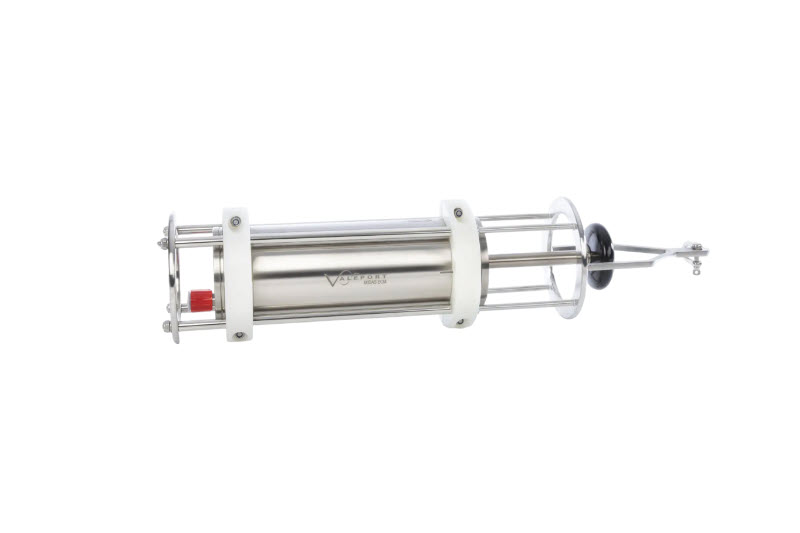

MIDAS ECM 전자식 유속계

Continuous: Regular output from all sensors at 1, 2, 4 or 8Hz.

Burst: Regular sampling pattern, where instrument takes a number of readings, then sleeps for a defined time.

Trip/Profile: Data is output as a chosen parameter changes by a set value, usually Pressure for profiling.

Conditional: Instrument sleeps until a selected parameter reaches a set value.

Delay: Instrument sleeps until predefined start time.

RS232: Up to 200m cable, direct to serial port via USB adaptor

RS485: Up to 1000m cable, addressable half duplex comms

Optional FSK: 2 wire power & comms up to 6000m cable (cable dependent)

Materials: Titanium housing, polyurethane sensor components, stainless steel cage

Depth Rating: 5,000 m (titanium)

Instrument size: Ø 150 mm x L 700 mm

Cage size: Ø 210 mm x L 732 mm

Weight in cage: 20 kg

Internal: 8 x D cells, 1.5V alkaline

External: 9 – 30V DC

Power: 1.7W (sampling), <1mW (sleeping)

Battery lige: >100 hours operation

Connector: SubConn MCBH10F
